  • DDM Diamond Drill Rigs

EF-75 SERIES

Turnkey Hydraulic Diamond Drill Rig

Compact. Capable. Proven.
Designed with a centrally mounted drill head assembly to reduce torque demand and lower fuel consumption. Equipped with a safety guard that automatically reduces RPM when opened — protecting the driller without slowing production.

EF-75

SERIES

EF Series Safety & Performance

  • Fully hydraulic heavy-duty rod handling (B-N-H-P capability)
  • Reversible drive hub rod hoist to reduce downtime
  • High-torque hydraulic wireline hoist for fast, efficient core retrieval
  • Level wind assembly for controlled cable guidance


Safer handling. Faster recovery. Less field interruption.

0m

/

0ft

Depth Capacity (N Rod)

0t

/

0lbf

Feed Force

0t

/

0lbf

Pull Force

Series Options

EF-75F

Heli-Portable Turnkey
Hydraulic Diamond Drill Rig

  • Designed for remote access and fly-in programs.
  • Lightweight, modular, and efficient — without sacrificing depth performance.

EF-75F

Multipurpose Turnkey
Hydraulic Diamond Drill Rigs

One drill. Multiple configurations.

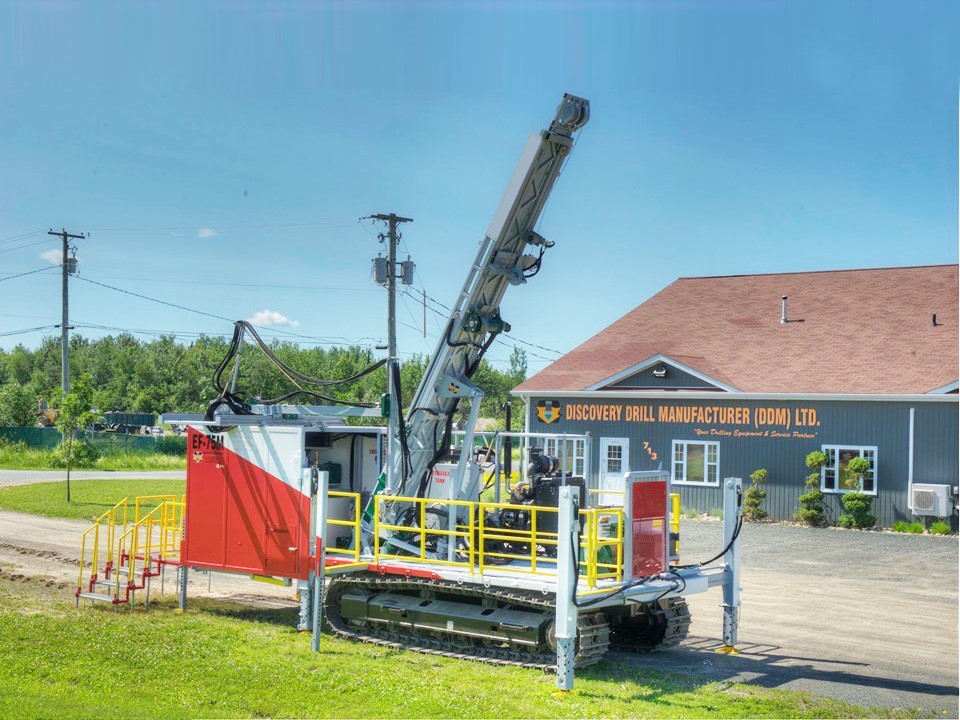

  • Track-mounted standard.

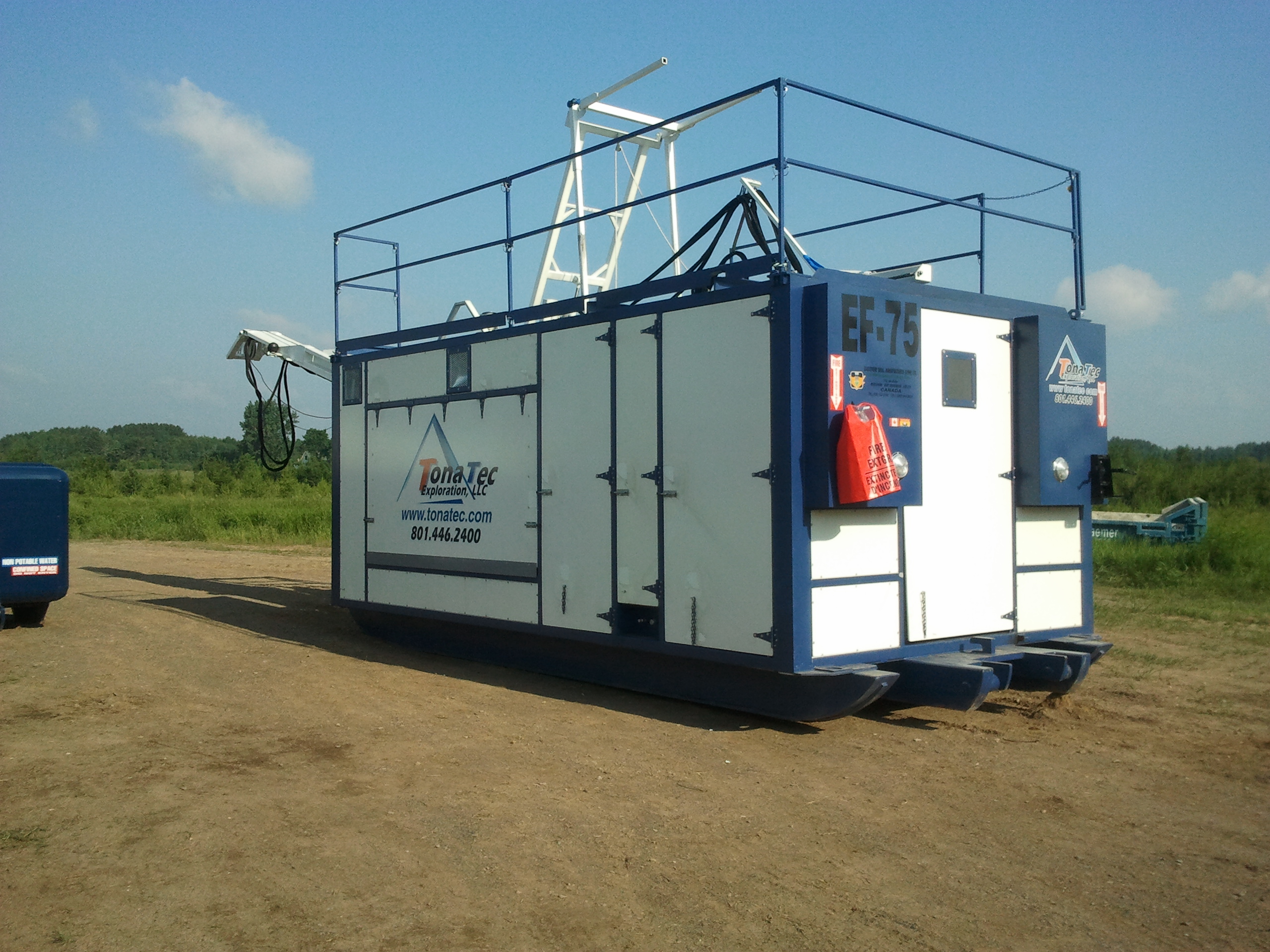

  • Adaptable to truck or skid mount.
  • Convertible to heli-portable with minimal effort.

Simple design.
Field efficiency.
Built to keep moving.

The E-75 has helped us achieve results in very complicated drilling projects that our very experienced drillers did not believe possible. It has constantly been put to the test and come through for us, and it keeps delivering. Power, ruggedness and reliability have been above expectations. Next one will be an EF-75!

Ove Goting

- Asera Mining AB
