  • Underground Core Drill Rigs

SCX DE110

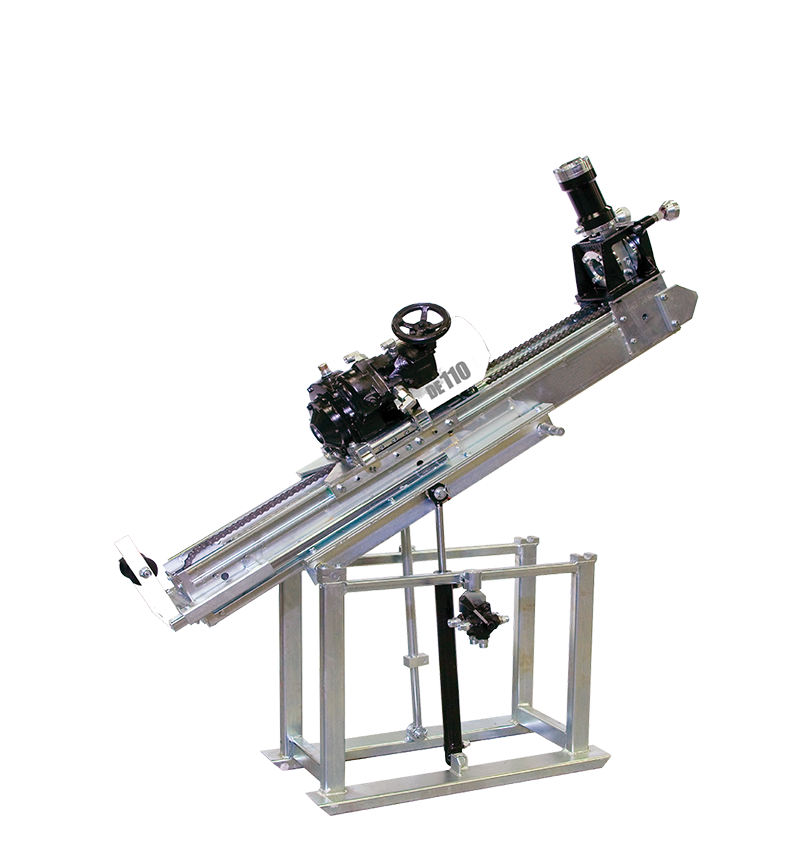

Compact Core Drill Rig

The smallest of the SCX family, built to handle underground core sampling. Mighty performance, tiny footprint.

DE110

Options

  • Rod holder / rod clamp 119 mm
  • Low gear high torque rotation unit
0m

/

0ft

Depth Capacity (TK46 Rod)

0t

/

0lbf

Feed Force

0t

/

0lbf

Pull Force

Key Features

  • CE marked to meet European standards (Conformité Européenne)
  • Rotating rod guard with interlock
  • All hydraulic operation
  • Synchronized rod handling
  • Compact and portable by vehicle or helicopter
  • Control panel for central control of all drilling operations
  • Torque and RPM adjustable to suit rock formation
  • Double hydraulic pump for water pump drive
  • Jaws for 33.5mm,46mm and 50mm drill rods
  • 360 degree turn table mounted to the frame”
  • CE marked to meet European standards (Conformité Européenne)
  • Rotating rod guard with interlock
  • All hydraulic operation
  • Synchronized rod handling
  • Compact and portable by vehicle or helicopter
  • Control panel for central control of all drilling operations
  • Torque and RPM adjustable to suit rock formation
  • Double hydraulic pump for water pump drive
  • Jaws for 33.5mm,46mm and 50mm drill rods
  • 360 degree turn table mounted to the frame”

The SCX DE110 is the smallest member of the family and has been designed as a portable drill for 46 mm (1-13/16 in) or “A” size exploration, grade control and grout-hole drilling.

The SCX DE110 is also well suited for rock or concrete sampling with a maximum hole size of 116 mm (4-1⁄2 in) to depths up to 30 m (100 ft). This unit is equally suited for both underground and surface applications.
