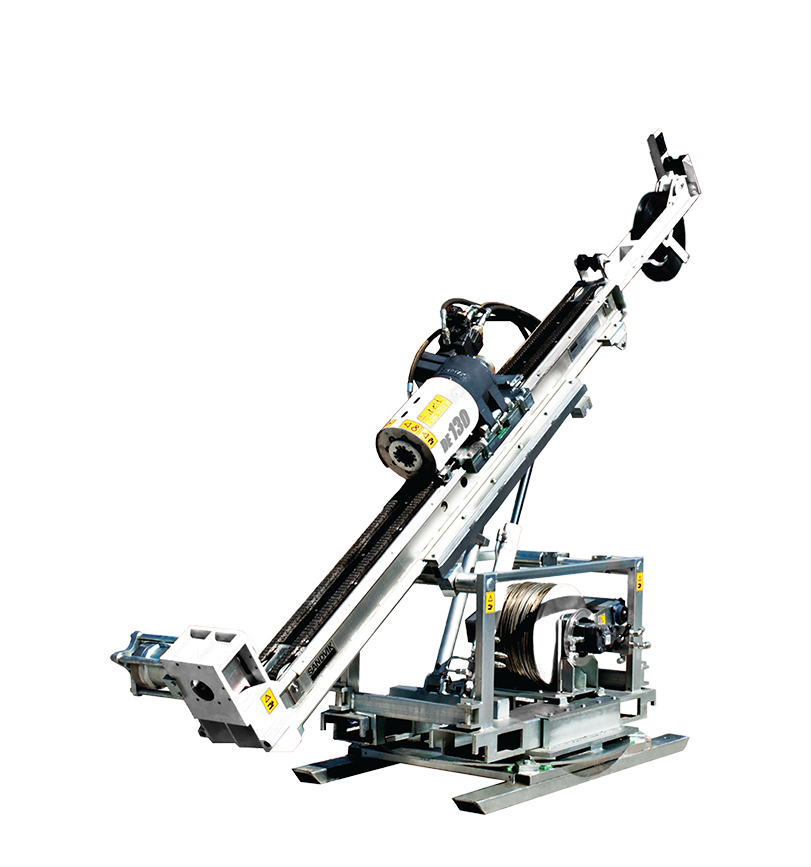

SCX DE130

Compact Core Drill Rig

The SCX DE130 is the most economic drill in its class for the underground and surface drilling contractor or mine operator. Through continuous improvements this drill has become truly versatile and has proven itself in a number of applications in mining such as underground core drilling, surface exploration drilling, underground mine development. For the construction industry, structure reinforcement, grouting and geotechnical applications.

Key Features

  • CE marked to meet European standards (Conformité Européenne)
  • Rotating rod guard with interlock
  • All hydraulic operation
  • Automated clamping for optimized rod tripping
  • 360 ° turn table attached to the rig base
  • Dedicated control panel for all drilling operations
  • Heliportable in easily detachable modules
  • Designed for easy set-up when fan drilling underground
  • Mechanical feed boom lineal adjustment allowing the feed boom to contact ground
  • Load sensing hydraulic system for optimized power efficiency

Options

  • Rod holder / clamp 150 mm
  • H size rotation unit
  • N size rotation unit – high torque
  • Extendable wireline mast

Options

  • Rod holder / clamp 150 mm
  • H size rotation unit
  • N size rotation unit – high torque
  • Extendable wireline mast

Technical
Specifications

This highly productive and reliable rig offers peace of mind with increased safety on an already proven design.

SPECIFICATIONS
METRIC
IMPERIAL
Depth Capacity815 (N Rod)815 m2,674 ft
Feed Force4.7 tonnes10,360 lbf
Pull Force6.3 tonnes13,820 lbf

SCX

AFTERMARKET

We have excellent aftermarket service and support with a global footprint. We can also tailor service contracts to suit your requirements.

SCX TOOLS

& Consumables

We have a complete range of down hole tools and consumables to support exploration rigs for start-up and continued operation, SCX can offer competitive tooling packages with the sale of drill rigs.
